Chipmunk CSChipmunk CS  Ref: SK21

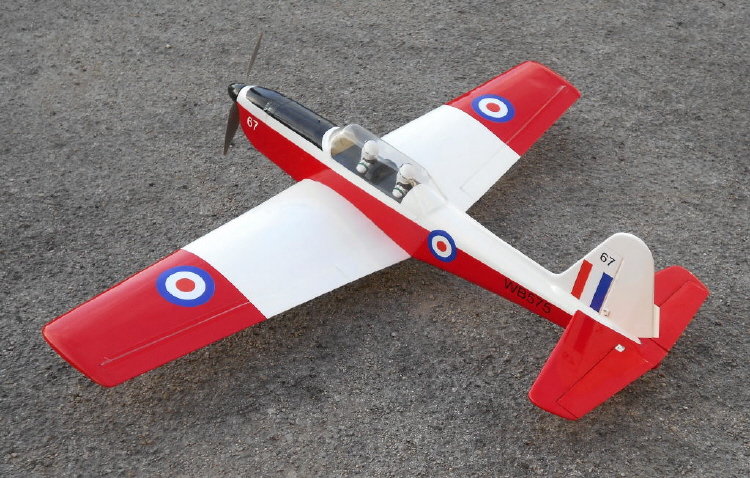

The Chipmunk is a favourite among modellers, evoking fond memories for many of their first flight in an aeroplane. Whilst the Chipmunk CS is not true scale it captures the essence of the full size aircraft. With a typical 4/500w 3542 size motor and using 3S 22/2900mA LiPos, the Chipmunk has a spritely performance and capable of performing a wide variety of manoeuvres. It is both a delight to build and fly attracting complements on both fronts. The all wood easy build construction follows the now well proven path of other models in our range in that it incorporates a fully sheeted built-up wing with a comprehensive collection of cut parts and accessories. The unique adjustable motor mount assembly means most 35mm diameter brushless motors can be accommodated.

Span 1280mm (50in) span
Weight 1490gms (3lb 4oz)
Section: Eppler 374 variant
Controls: Aileron/Elevator/Rudder/Motor with optional Flaps

Suggested Power Train:
Motor: 3542 1250Kv
Propeller: APCE 10x6
Speed Controller: Minimum 50A
LiPo Batteries: 22/2900mAhr 3S


Radio Control Equipment:
4/6ch Receiver
2 off Metal geared Micro servos (HS82MG/NewPower XL16/7MG)
2 off Standard size servos
2 off 2/300mm Servo Ext. Lead
