Rico-SHE

EPP Virtually Crash Proof Models Pylon Racers

For Current price see Prices

Description

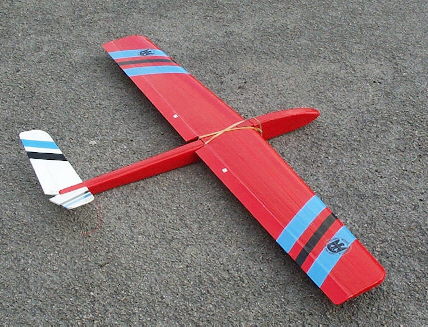

The Rico-SHE was designed to meet the requirements of the new UK 60 inch EPP pylon racing rules and to provide slope flyers with a model that has the performance of more conventionally constructed slope soarers with the durability of an EPP model. Performance wise the Rico-SHE is quicker and more aerobatic than a Pzazz but marginally slower than a Stiletto which was reputedly the quickest non-moulded / composite 60in racer available in the UK.

If the Rico-SHE is never used as a pylon racer owners will be more than satisfied with it's performance as a sports aerobatic sloper as the Rico-SHE is not only quick but fully aerobatic. It can sustain inverted flight, do continuous outside loops and return a quick rate of roll etc..

The Rico-SHE comes in two versions, the standard one with a 1/16 inch (1.5mm) ply fuselage box and a RG15 wing whilst the LW uses 1/32in (0.8mm) ply and a composite RG15 / Eppler 205 wing. The LW is 3ozs (100gms) lighter due to not so much nose weight being required. There is provision to carry 12 ozs (300gms) of lead ballast to give added bite in strong! winds.

Contruction consists of a ply box fuselage covered in EPP and cross weave tape whilst the wing follows the standard PMP practice of using hardwood spars and balsa ailerons. Construction time is a 1/4 to 1/3 of that of a similar wood foam model.

Unfortunately performance on this scale in EPP comes at a price as the Rico-SHE requires 3 metal geared micro servos (HS81MG)and a 2/3AF size Rx battery with a small receiver (Align 6 / JR R700) where the servos and crystal plugs in the end

Specification

Type:       Cat 4
Span:       1520mm
Controls:   Ailer/Elev/Flaps(opt)
Av Wt.      900 - 1000 gms
Section:   Std. RG15 LW RG15/E205

R/C Equipment.

  • 2/3AF Rx battery,
  • Ailerons / Elevator - 3 Metal Gear Micro servos (HS81/5MG) - strongly recommended
  • Switch harness & 2 servo extension leads or Y lead for non-computor Transmitters
  • 4/6 channel Rx with servos and crystal plugging into ends of Rx.

Additional Materials Required

  • 12 minute 2 part Epoxy,
  • Runny Superglue,
  • Spray Impact Adhesive
  • Sellotape Diamond (Aileron hinge)
  • Final covering material (Coloured Vinyl tape or heatshrink polyester film i.e Profilm or Solartex)

All the items required to build the Rico-SHE including the radio equipment can be purchased from PMP.
