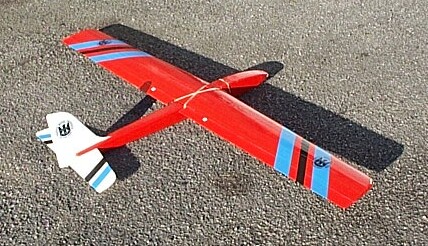

The Ban-SHE is a stylish high performance 62in span crash resistant aerobatic EPP slope soarer designed for the modeller wanting to combine EPP durability with rigid structure performance. It is intended that Ban-SHE is built with wing mounted aileron servos with the ailerons being used as flapperons with elevator flap coupling. In this mode Ban-SHE can perform must aerobatic manoeuvres including outside loops, horizontal eights and sustained inverted flight etc. Ban-SHE will fly in most wind conditions depending on the quality of the slope. Strong winds may require the model to be ballasted on the balance point.

Contruction consists of a ply box fuselage covered in EPP and cross weave tape whilst the wing follows the standard PMP practice of using hardwood spars and balsa ailerons. Construction time is a 1/4 to 1/3 of that of a similar wood / white foam model. Field repairs if required are of the Elastoplast variety!

The Ban-SHE takes a standard AA size square Rx battery with standard size receiver (4/6 ch.) and servos for Rudder and Elevator controls but the Ailerons does require two micro servos (preferably metal geared). It is best flown with a computeriesed transmitter using the ailerons as Flapperons but any 4 channel non-computerised transmitter can be used.

R/C Equipment.

• Square Rx battery,
• Rudder / Elevator - 2 Standard servos.
• Ailerons - 1 standard servo or 2 metal geared micros (HS81MG) strongly recommended.
• Switch harness & 1/2 servo extension leads or Y lead for non-computor Transmitters
• 4/6 channel Rx

Additional Materials Required

• 12 minute 2 part Epoxy,
• Runny Superglue,
• Spray Impact Adhesive
• Sellotape Diamond (Aileron hinge)
• Final covering material (Coloured Vinyl tape)

All the items required to build the Ban-SHE the radio equipment can be purchased from PMP.
